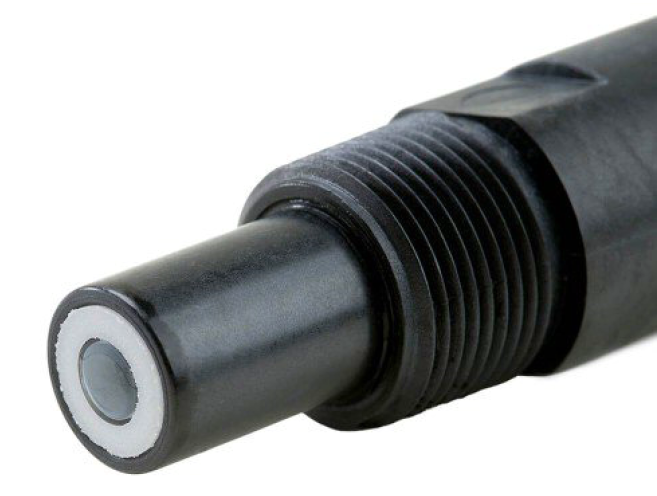

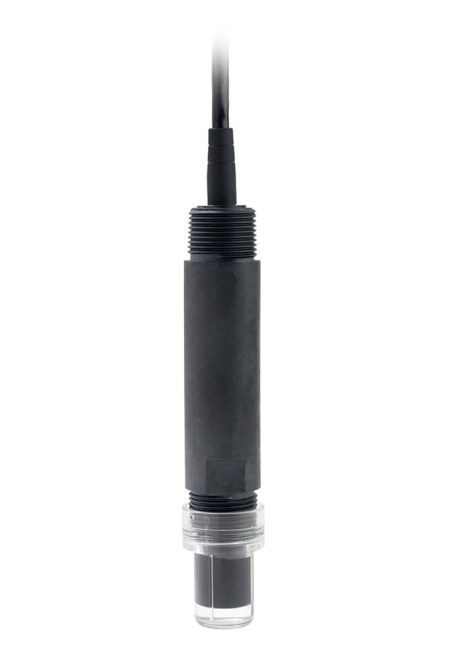

S272CDTC Industrial pH Probe

Powered by Sensorex!

This industrial grade pH sensor provides reliable online monitoring for in-line or submersion installation in moderate environments.  This probe is Sensorex P/N S272CDTC/P1K/10/TL/TL.

The sensor cable is 3 m (10 ft) long and has tinned ends.  Use the internal sensor bridge built in to every WaterFeature# device for connecting.

This probe has a 4-wire configuration:  2 wires for pH probe/gnd, and 2 wires for RTD probe/gnd.  Add an RTD EZO to your WaterFeature# device to enable temperature compensation.

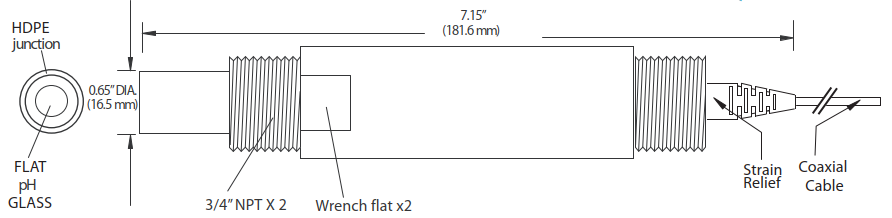

Ryton (Polyphenyl Sulfide) PPS Body

3/4" NPT Threads

3 m (10 ft) cable length, tinned leads

pH EZO REQUIRED
VOLTAGE ISOLATION RECOMMENDED
TEMPERATURE COMPENSATION RECOMMENDED RTD EZO and TEMP PROBE
