Don't need an enclosure?  Build the WaterFeature8 into your own custom enclosure.  Works great with the optional Panel Integration Kit (PBK).

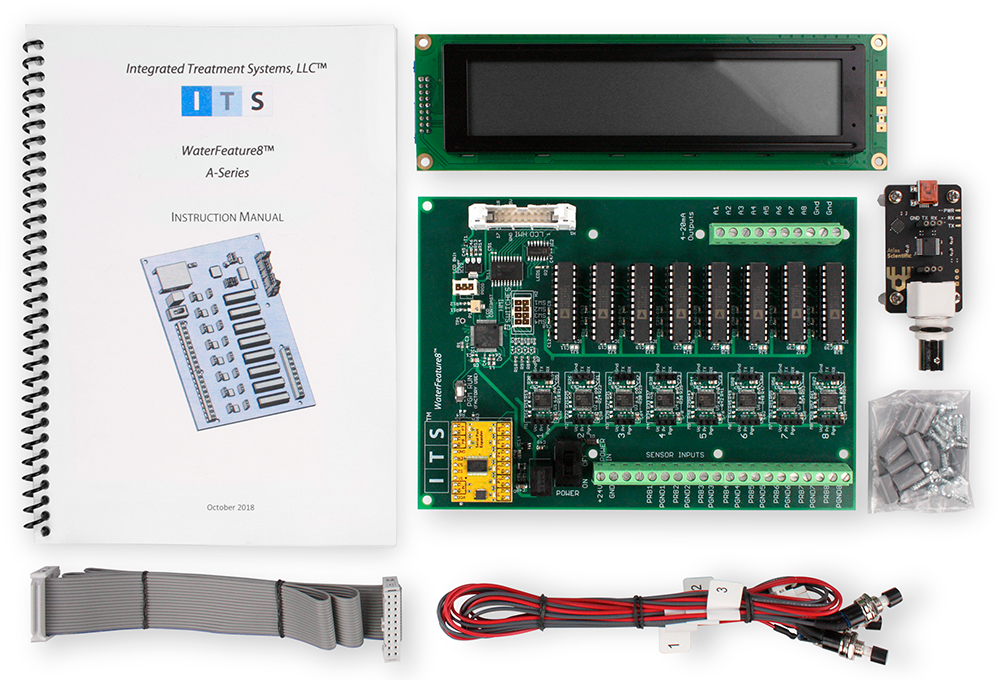

The System Builder Kit (SBK) includes the following components:

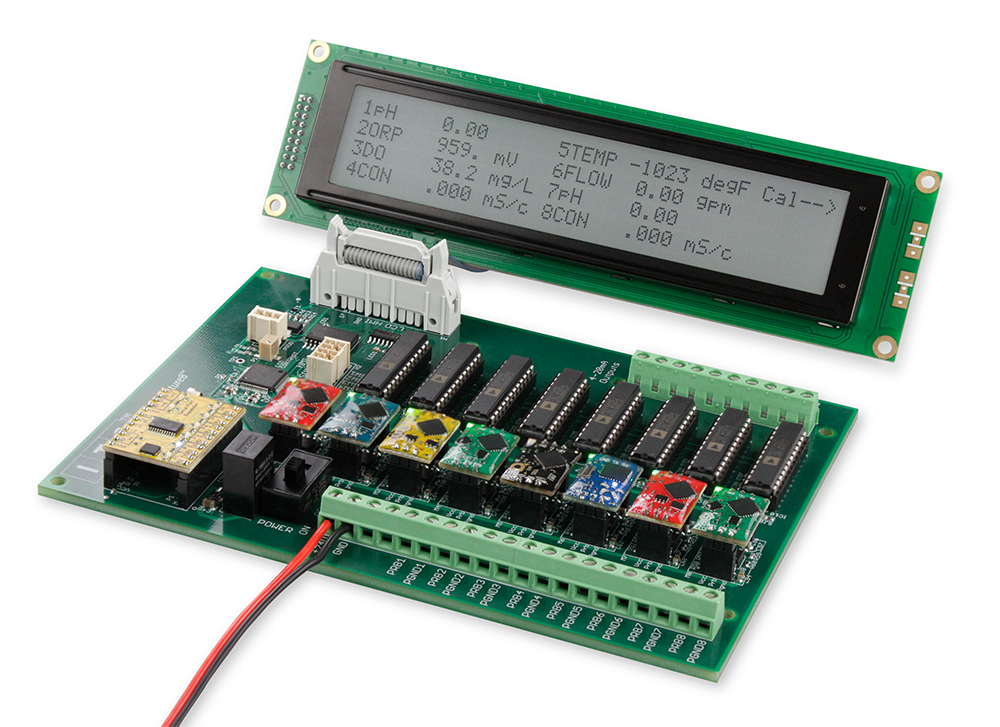

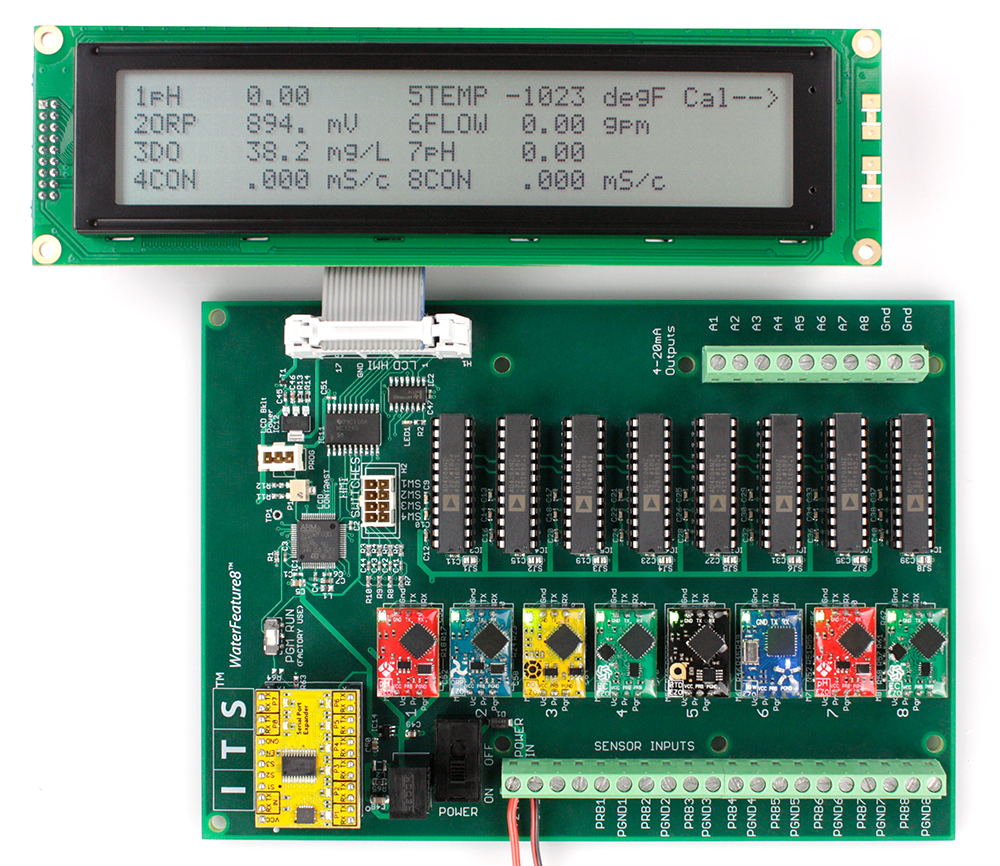

  • WF8 PCB, Serial Only or Serial+Analog
  • 4x40 Character LCD Screen and Ribbon Cable Wiring Harness
  • 4-button Pre-Wired Harness (Select Small Buttons or Large Buttons)
  • Button Mounting Bracket
  • 3-wire RS-232 Female DB9 adapter

Note that photos are currently out of date and may not represent actual included items.  For example, the current Gen3 PCBs are white, and ITS does not include the EZO carrier board.  If purchased with a Panel Integration Kit, mounting hardware will be different.

Materials

Polycarbonate

Powder Coated Aluminum

Shipping & Returns

See our shipping and returns policies below.

Dimensions

Approximately 9.5" W x 6.3" L x 3.5" H. Download the complete user manual from our Downloads page for detailed dimensions.

Care Instructions

Not formally rated, but we anticipate it performs to IP54 during use. Regardless, we recommend careful selection of the final service location of the unit.
